CORE 4D Dimensions plugin


Recommended Posts

This helper plugin will display mesh dimensional data. It works in point, edge and polygon mode and displays individual lengths in point and edge mode, with total length. In polygon mode it displays area and total area of all selected polygons.



Point mode

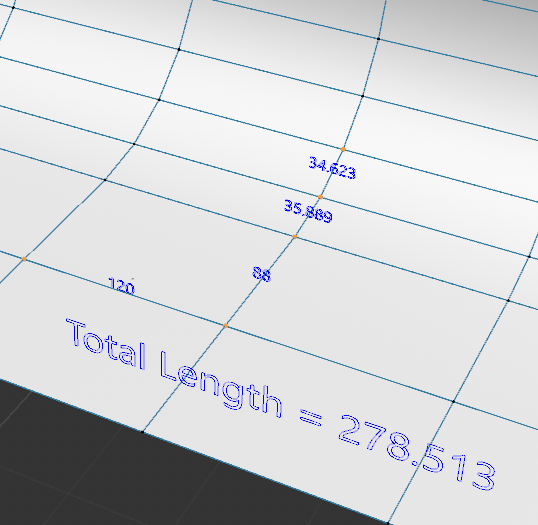

Two or more points are selected and the length between them is displayed

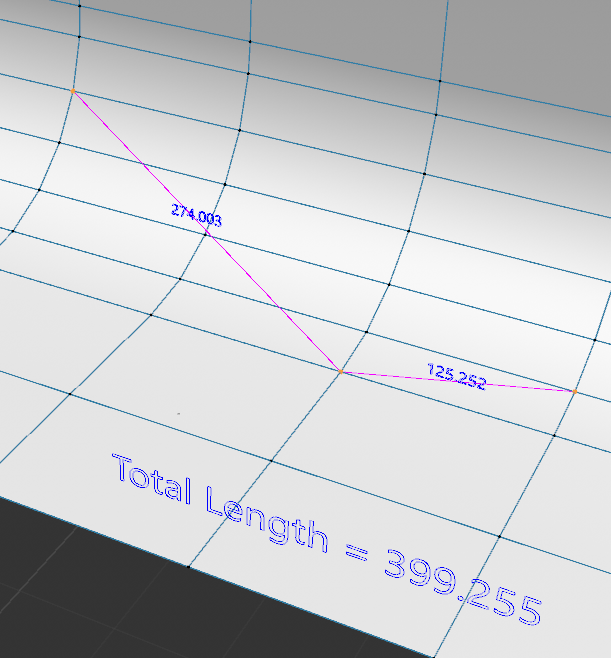

Alternatively, selecting points which are not connected will provide you with distance between them without using mesh itself, just a shortest line between the tow.

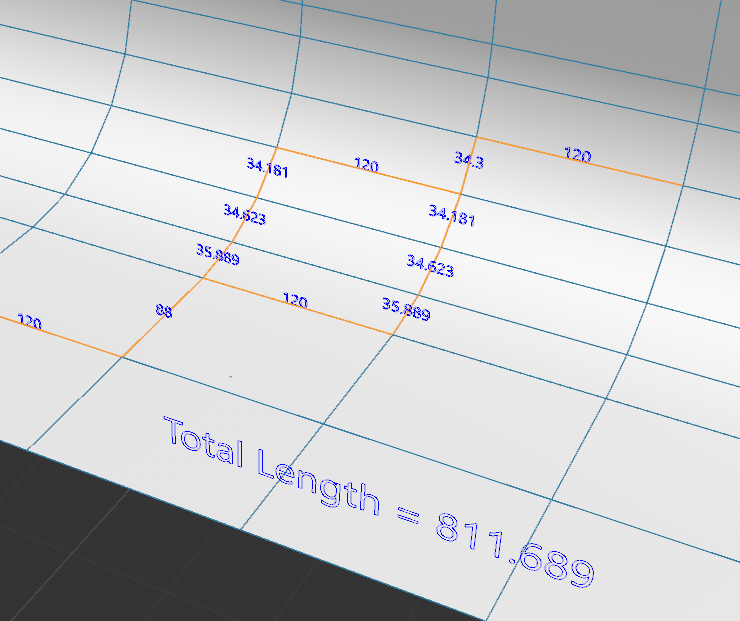

In edge mode it calculates edge lengths

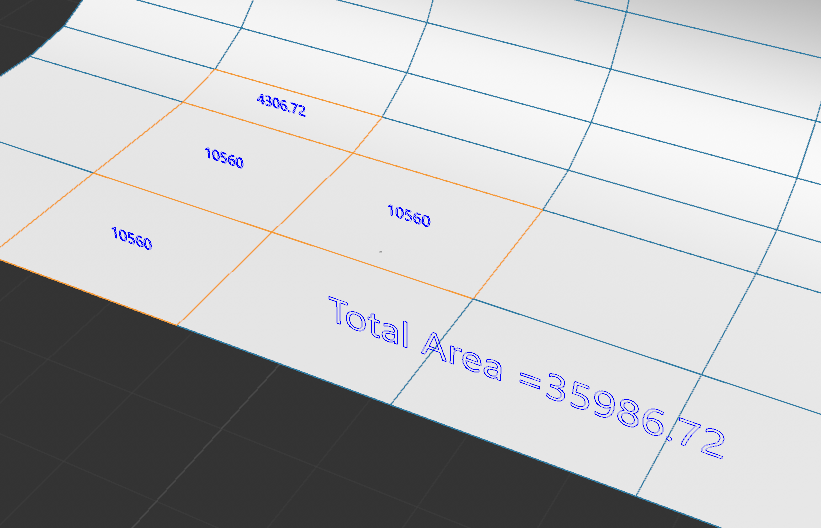

In polygon mode is calculates area

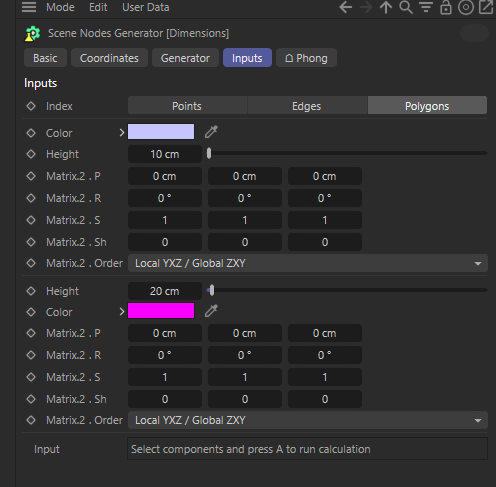

There are additional controls to choose custom colors and transform the resulting dimensions








To install simply import it into content browser





https://www.core4d.com/ipb/store/product/47-dimensions/



Requirements: Cinema version 2024+ is required

Link to comment

Problem is that I tried to change five different e-mail addresses using five different e-mail providers and none of them works with Core4D. You have completely broken e-mail sending system.

Edited by Smolak (see edit history)
Link to comment
